5kg Hard Bearing Lower Belt Drive Rotor Balancing Machine (Model: XH-5Q)

1. Equipment Description

Zero Dynamic's 5kg hard-bearing lower belt drive rotor balancing machine (Model: XH-5Q) is widely used for the balance correction of various rotating workpieces such as small and medium-sized motor rotors, impellers, crankshafts, drums and shaft products. It is driven by a loop belt from the bottom, which ensures the balance quality and accuracy of the workpieces. It features convenient loading and unloading, quick start, and high work efficiency.

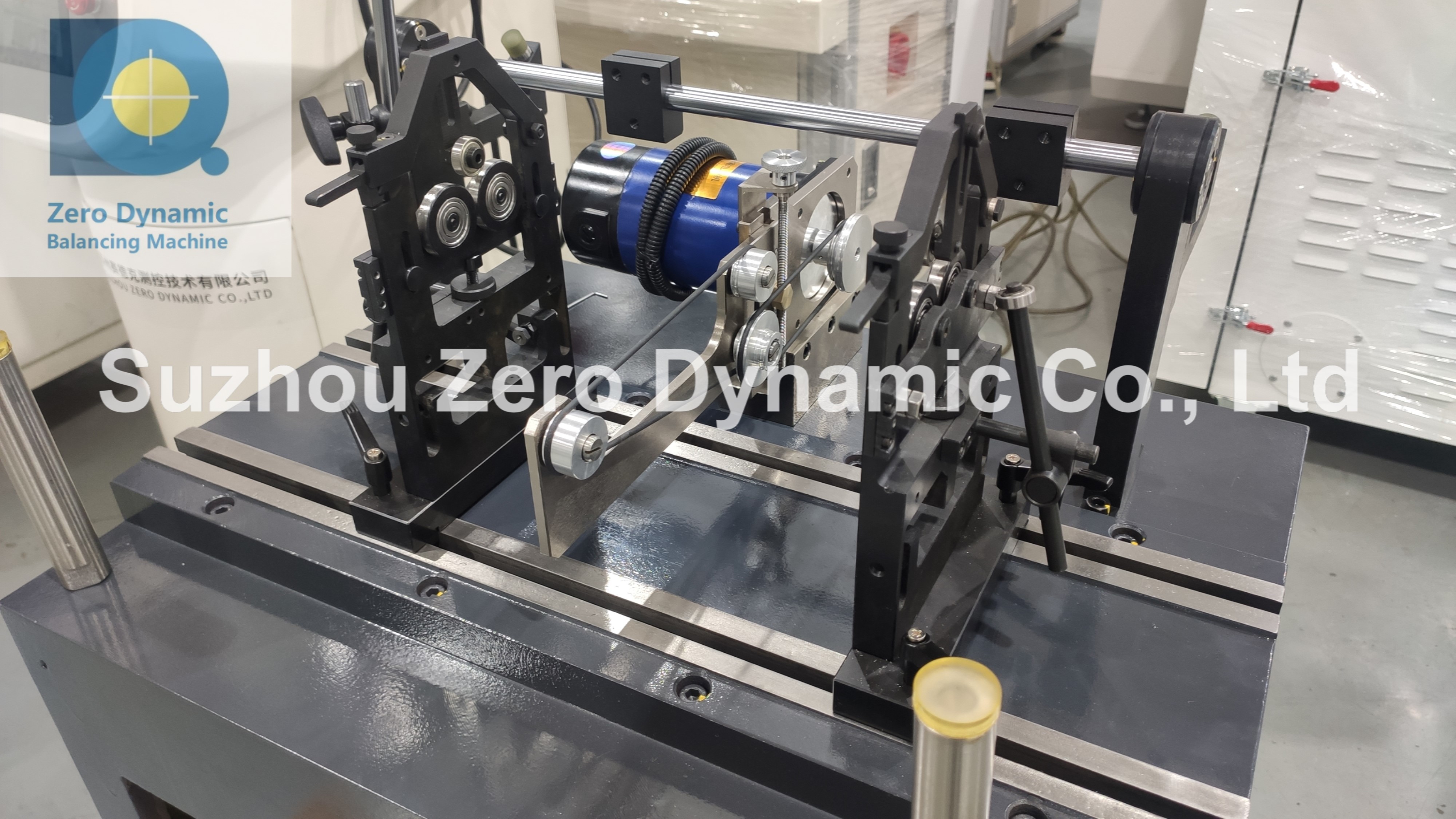

3. Equipment Photo:

4. Main Features:
4.1 The equipment adopts an advanced electrical measurement system with diverse measurement methods. It can perform both dynamic and static balancing, and there are up to 10 types of support methods.
4.2 The methods of adding or removing material and the forward and reverse rotation can be flexibly customized.
4.3 The equipment uses a combination of multiple calibration coefficients to automatically adjust the system sensitivity without jumps during gear - shifting.
4.4 With dual filtering of software and hardware and high - speed data compression, the equipment features fast measurement speed and high measurement accuracy.
4.5 The radar graph on the balance picture indicates the unbalance value and angle.
4.6 Automatically adjust the sensitivity according to the signal strength, the maximum indication sensitivity of the measuring system is 1g.mm per plane.
4.7. Measurement can be started automatically after reaching the required rotational speed range.
4.8. After presetting the sampling time, the end of sampling automatically changes to red font and the unbalance reading is locked, and displays the result of the measurement as OK or NG.

Suzhou Zero Dynamic Co., Ltd was registered in 2003 and is a scientific and technological company engaging in full automatic balancing technology and related vibration measurement. The company is a high-tech enterprise with the integration of product research & development, product manufacturing, product sales, product agent and technical service.

The company mainly deals with all kinds of advanced dynamic balance testing equipment, vibration testing equipment, field dynamic balancing correction machine, vibrometer, deflection meter, varieties of sensors and accessories etc. High revolving speed and high precision are the key features of our products. The products are mainly used in mechanical and electrical, textile, chemical fiber, machine tools, automobile, train, petrochemical, printing, aviation, home appliances, packaging, fire protection, cleaning appliance and other industries.

After fifteen years of technical accumulation, the company has developed into a comprehensive enterprise of considerate scale in the manufacturing of various types of balancing machines, development and manufacturing of automatic equipment and development of software.

The company is the first Chinese company which successfully applied laser correction technology to dynamic balancing equipment. The company has a high-level technical team, which includes high professional balancing technology and vibration analysis engineers, automation equipment R&D engineers, excellent after-sales service engineers etc. The company also has a group of professional engineering and technical personnel which enables the company to undertake transformation and upgrade of various dynamic balancing machine, consultation of vibration-related business, to provide rationalizing technology solutions for balance vibration, to provide field balance and vibration analysis of complex workpiece for the customers etc.
