Car Engine Cooling Fan, Automobile Radiator Fan Balancing Machine
1. Equipment Description
Zero Dynamic’s Car Engine Cooling Fan, Automobile Radiator Fan
Balancing Machine is applicable for dynamic balancing inspection of automobile air
conditioning cooling fans. It carries out dynamic balancing
inspection of automobile cooling fans, so as to ensure the quality
and performance of the fans..
Zero Dynamic’s Car Engine Cooling Fan, Automobile Radiator Fan
Balancing Machine mainly includes a balancing measurement table, a machine stand,
and a balancing clamp box. Unbalance can be displayed in units of
"g" or "g.mm". The amount of unbalance displayed on the machine is
the amount of unbalance centered on the surface. The
multifunctional fixture adopted in this equipment can adapt to
various sizes of workpieces, and the pneumatic quick chuck can
clamp the workpieces more quickly, which greatly improves the
working efficiency.
2. Technical Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Workpiece mass range (kg) | 5kg |
| 2 | Maximum dimension of workpiece (mm) | 900X700mm |
| 3 | Balance speed (r/min) | 7000 |
| 4 | Repeated Measurement Accuracy | 6g.mm |
| 5 | Unbalance Reduction Ratio | ≥90% |
| 6 | Balance test time (s) | 20 |
| 7 | Working air pressure (MPa) | 0.4-0.6MPa |
| 8 | Working voltage (V) | AC:220V External |
| 9 | Balance method | Manual add clips |
| 10 | Balancing measurement structure | Soft supporting measurement pedestal |
| 11 | Total machine power | 3KW |
| 12 | Average gas consumption | ≤3L/min |

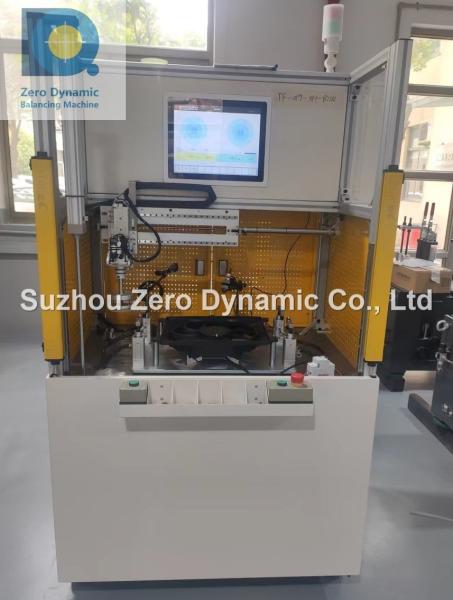

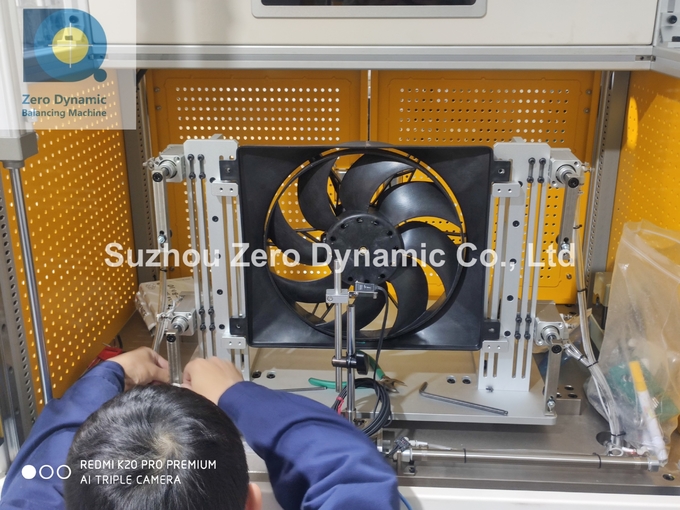

3. Equipment Photo:
4. Main Features:
4.1 Safety protection door
4.2 17-inch man-machine IPC
4.3 Self-developed balancing measurement software
4.4 Pneumatic fixture with quick clamping
4.5 Soft bearing structure ensures high precision measurement data
4.6 The equipment has fault-diagnosis function, giving fault alert
and information when the equipment fails.
4.7 The equipment has strong compatibility, simple change-over for
different products. Staff can operate the machine after simple
training.
4.8 There is no need to draw marks or paste reflective paper on the
rotor for speed measurement.
4.9 Automatic speed control without human intervention.
4.10 Fully independent intellectual property rights. Customized
solutions can be developed as per customer's requirement.
5. About Zero Dynamic:
Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging
in full automatic balancing equipment and related vibration
measurement since 2003.
Over the past 20 years, Zero Dynamic has developed 100+ kinds of
equipments. We mainly deals with all kinds of advanced dynamic
balancing equipment, field dynamic balancing instrument, vibrometer
and motor performance testing machine. High revolving speed and
high precision are the key features of our products. We have served
3000+ clients in China and abroad, including many world-famous
companies such as LG, Black&Decker, Nidec, Huawei, Foxconn,
Midea, Ecovas, Daikin, Lexy.
Now (2024) Zero Dynamic has a factory of 10,000sqm and more than
120 staff including a professional R&D team of 30+ engineers
and 20+ debugging and after-sales team.
As an important participant in Chinese dynamic balancing industry,
Zero Dynamic continues to increase the development of new products,
and is actively developing into the new energy industry as well as
aerospace and other high-speed dynamic balancing and intelligent
manufacturing fields, aiming to provide customers with reliable and
diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of
balancing machines, especially high-speed and high-precision soft-bearing balancing machines and
automatic balancing machines. 20+ years of industry experience and 3000+ customer service
experience make Zero Dynamic have the top new product development
ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC,
Keyence, etc. Key parts have patents, high safety protection level,
stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff
including a professional R&D team of 30+ engineers, 20+
debugging and after-sales team. We always keep 100+ balancing
machines in stock, covering most common balancing machine models.
Once order has been confirmed, balancing machines in stock can be
commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which
serve our clients wholeheartedly. For our clients, no matter the
equipment is within or beyond the 12-month warranty period, we can
provide technical consultance service. Within warranty period, our
service team will give a telephone response within 4 hours after
receiving client's fault report and reach the machine site within
24hours (within the city) or 72 hours (other cities or provinces).
If the fault can't be cleared, our service staff could only leave
the site after getting client's approval.
