1. Equipment Description
Zero Dynamic's Electric Tool Impeller Automatic Balancing Machine

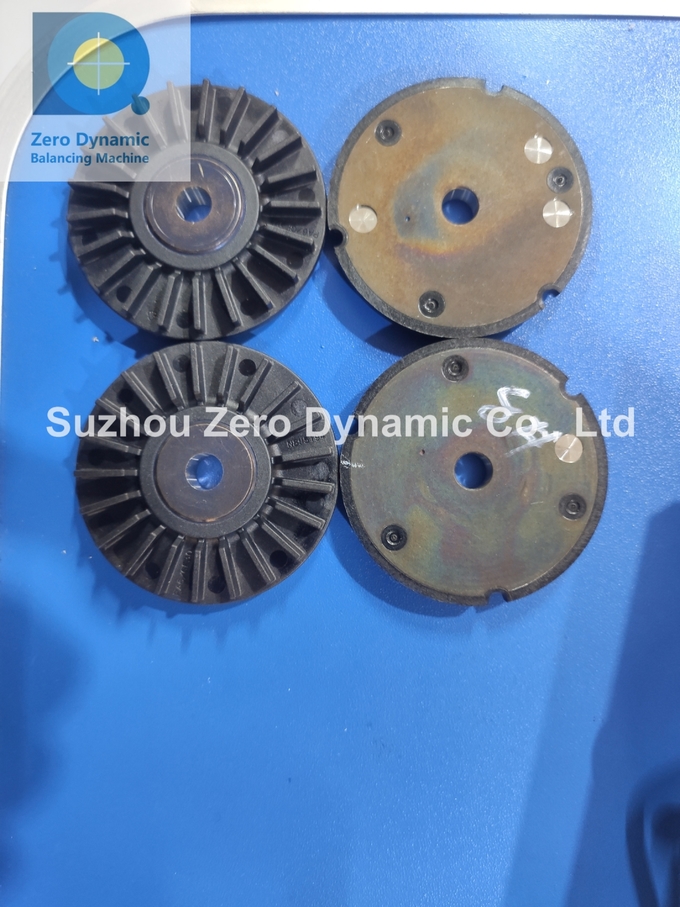

Power Tool Impeller Drilling Correction Balancer is mainly to do dynamic balance measurement& auto single plane
balance corretion of disc workpieces such as power tool impeller,
high speed fan blade.
Zero Dynamic's Electric Tool Impeller Automatic Balancing Machine
Power Tool Impeller Drilling Correction Balancer is a customized automatic balancing machine for customer's power
tool impellers, compatible with customer's two specifications of
power tool impellers for balancing inspection and automatic
drilling correction balancing. The balancing test station adopts
rising sleeve structure with high repeatability. The equipment
automatically detects the rotational speed without manual scribing.
Zero Dynamic's Electric Tool Impeller Automatic Balancing Machine
Power Tool Impeller Drilling Correction Balancer software includes balance test, balance data storage and printing, data statistics
after qualification, test station calibration etc function.
2. Product Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Equipment model | XH-2601A |
| 2 | Equipment dimension (mm) | 1100X1000X1840 |
| 3 | Cycle time | 20-25s (for 3 holes) |
| 4 | Workpiece height range (mm) | ≤50 |
| 5 | Workpiece diameter rang (mm) | Φ20-150 |
| 6 | Workpiece weight range (kg) | 0.01-1 |
| 7 | Balance test speed range | 1000-4800 |
| 8 | Balance correction method | Milling/drilling cutters |
| 9 | Balance display accuracy (mg) | 0.1 |
| 10 | Unbalance deduction ratio URR | 95% |
| 11 | Minimum attainable residual imbalance (g.mm/kg) | ≤0.5 |
| 12 | Repeatability precision (g.mm) | 0.05 |
| 13 | Drive method | Servo motor drive |
| 14 | Dynamic balance function | Single plane correction |
| 15 | Power supply | 220V/50Hz |
3. Equipment Photo:
4. Main Features:
4.1 It integrates functions of automatic testing, automatic
carrying and automatic drilling correction. All balancing work from
balance measurement, angle positioning, turning and transporting,
drilling balance correction and re-testing, vacuuming, etc. is
completed continuously and automatically.
4.2 It has advantages of short cycle time and high efficiency. It
can be connected to a production line for automated production and
can collect, output and display the data generated by the entire
process.
4.3 The main functions of the software are balance test system,
balance data storage and printing, data statistics after
qualification, etc. Special functions can be customized for
specific products.
4.4 The main body of the machine is steel frame structure, dynamic
balancing bracket, fixed motor drive plate, with flip-up function
transport device, power head for automatic remove material, control
system etc. The equipment can carry out automatic positioning and
drilling correction according to the unbalance value and angle
displayed by the measurement system.
5. About Zero Dynamic:
Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging
in full automatic balancing equipment and related vibration
measurement since 2003.
Over the past 20 years, Zero Dynamic has developed 100+ kinds of
equipments. We mainly deals with all kinds of advanced dynamic
balancing equipment, field dynamic balancing instrument, vibrometer
and motor performance testing machine. High revolving speed and
high precision are the key features of our products. We have served
3000+ clients in China and abroad, including many world-famous
companies such as LG, Black&Decker, Nidec, Huawei, Foxconn,
Midea, Ecovas, Daikin, Lexy.
Now (2024) Zero Dynamic has a factory of 10,000sqm and more than
120 staff including a professional R&D team of 30+ engineers
and 20+ debugging and after-sales team.
As an important participant in Chinese dynamic balancing industry,
Zero Dynamic continues to increase the development of new products,
and is actively developing into the new energy industry as well as
aerospace and other high-speed dynamic balancing and intelligent
manufacturing fields, aiming to provide customers with reliable and
diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of
balancing machines, especially high-speed and high-precision soft-bearing balancing machines and
automatic balancing machines. 20+ years of industry experience and 3000+ customer service
experience make Zero Dynamic have the top new product development
ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC,
Keyence, etc. Key parts have patents, high safety protection level,
stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff
including a professional R&D team of 30+ engineers, 20+
debugging and after-sales team. We always keep 100+ balancing
machines in stock, covering most common balancing machine models.
Once order has been confirmed, balancing machines in stock can be
commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which
serve our clients wholeheartedly. For our clients, no matter the
equipment is within or beyond the 12-month warranty period, we can
provide technical consultance service. Within warranty period, our
service team will give a telephone response within 4 hours after
receiving client's fault report and reach the machine site within
24hours (within the city) or 72 hours (other cities or provinces).
If the fault can't be cleared, our service staff could only leave
the site after getting client's approval.
