1. Equipment Description
Zero Dynamic's Car Seat Fan Balancing Machine, High Precision Fan
Blade Balancing Machine is applicable for dynamic balance correction for heat dissipation
fan from 2.5cm to 8cm. The equipment improves product quality by
reducing fan unbalance value and making the product run with low
vibration and low noise.
Zero Dynamic's Car Seat Fan Balancing Machine, High Precision Fan Blade Balancing
Machine adopts Self-developed high-precision spindle (which can
effectively eliminate the transmission error of the stator base) ,
high-precision accelerometer sensor and customized data acquisition
card. Together with Zero Dynamic’s self-developed dynamic balance
software, the equipment can achieve high accuracy balance
measurement (meets ISO1940 G1 standard).
2. Technical Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Equipment model | XH-4601 |
| 2 | Operation system | Windows 7 Simplified Chinese interface |
| 3 | Balance Grade and component calculation | Standard |
| 4 | Spectrum analysis function | FFT |
| 5 | Fan speed range | 1500-30000rpm |
| 6 | Measurement accuracy | 0.03g.mm |
| 7 | Balance display accuracy | 0.1mg |
| 8 | Minimum attainable residual unbalance | 0.2g.mm/kg |
| 9 | Vibration measurement | Acceleration sensor |
| 10 | Balance test plane | Single plane balance |
| 11 | Vibration test | Acceleration sensor(1000MV/G) |
| 12 | DC power supply | 0-30V(adjustable) Optional |
| 13 | Equipment external dimension | 420X500X700 mm |

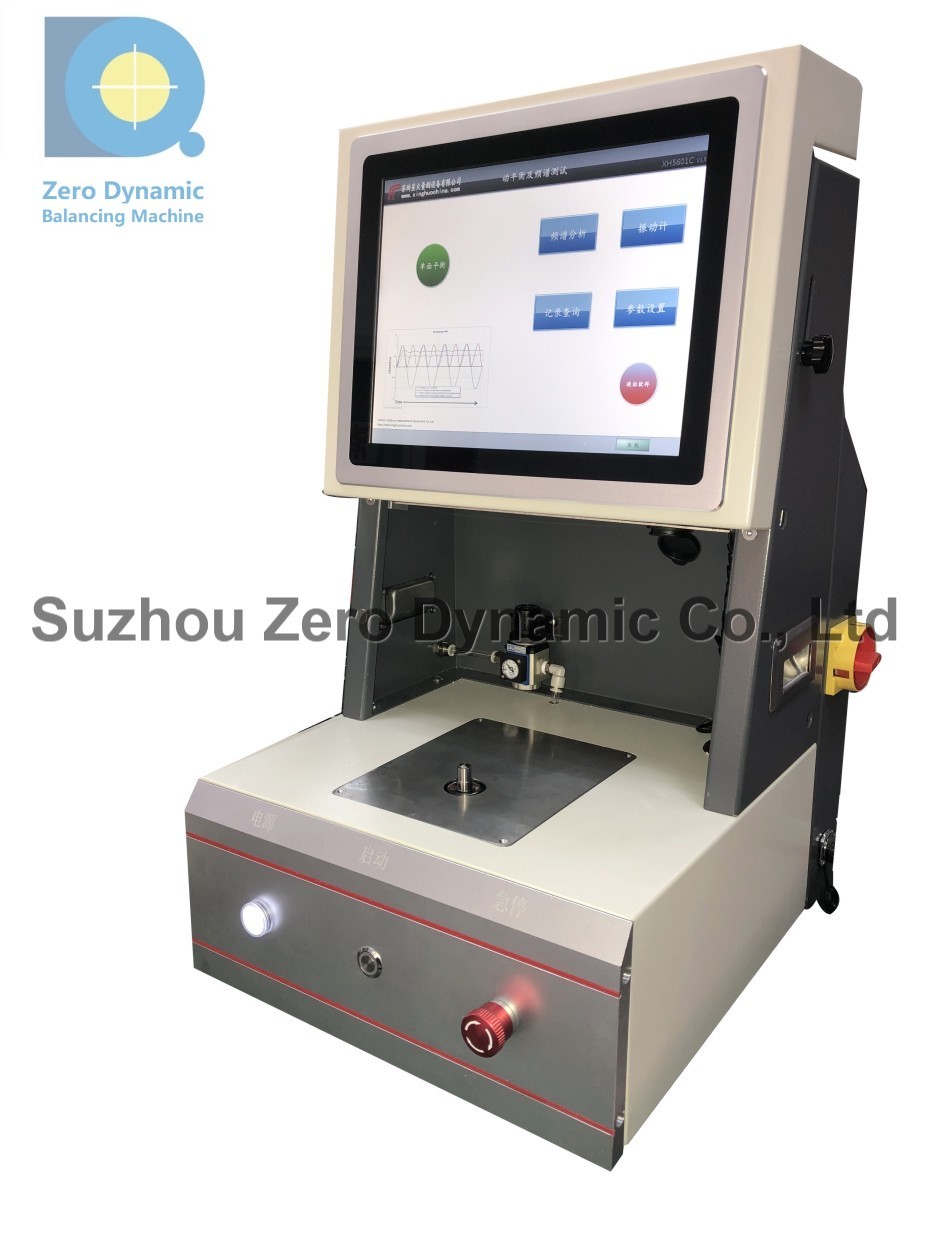

3. Equipment Photo:
4. Main Features:
4.1 The equipment uses Windows operation system, easy for function
extension and has data processing, storage, uploading to server,
printing functions etc.
4.2 It uses high sensitive optical fiber which ensures system
stability and saves changeover time.
4.3 The system displays correction angle and mass.
4.4 Automatic judgement whether the product is eligible or not,
easy to manage product quality.
4.5 Chinese operation interface, easy to learn and understand.
5. About Zero Dynamic:
Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging
in full automatic balancing equipment and related vibration
measurement since 2003.
Over the past 20 years, Zero Dynamic has developed 100+ kinds of
equipments. We mainly deals with all kinds of advanced dynamic
balancing equipment, field dynamic balancing instrument, vibrometer
and motor performance testing machine. High revolving speed and
high precision are the key features of our products. We have served
3000+ clients in China and abroad, including many world-famous
companies such as LG, Black&Decker, Nidec, Huawei, Foxconn,
Midea, Ecovas, Daikin, Lexy.
Now (2024) Zero Dynamic has a factory of 10,000sqm and more than
120 staff including a professional R&D team of 30+ engineers
and 20+ debugging and after-sales team.
As an important participant in Chinese dynamic balancing industry,
Zero Dynamic continues to increase the development of new products,
and is actively developing into the new energy industry as well as
aerospace and other high-speed dynamic balancing and intelligent
manufacturing fields, aiming to provide customers with reliable and
diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of
balancing machines, especially high-speed and high-precision soft-bearing balancing machines and
automatic balancing machines. 20+ years of industry experience and 3000+ customer service
experience make Zero Dynamic have the top new product development
ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC,
Keyence, etc. Key parts have patents, high safety protection level,
stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff
including a professional R&D team of 30+ engineers, 20+
debugging and after-sales team. We always keep 100+ balancing
machines in stock, covering most common balancing machine models.
Once order has been confirmed, balancing machines in stock can be
commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which
serve our clients wholeheartedly. For our clients, no matter the
equipment is within or beyond the 12-month warranty period, we can
provide technical consultance service. Within warranty period, our
service team will give a telephone response within 4 hours after
receiving client's fault report and reach the machine site within
24hours (within the city) or 72 hours (other cities or provinces).
If the fault can't be cleared, our service staff could only leave
the site after getting client's approval.
