1. Equipment Description
Zero Dynamic’s Single Station Fully Automatic New Energy Motor
Balancing Machine is mainly suitable for dynamic balance measurement & automatic
correction of new energy automobile motor rotor between 5-50kg,
external diameter Φ90-φ240mm, journal diameter φ20-φ80mm. The
equipment has strong compatibility, quick changeover, high
efficiency, and is suitable for mass production.
Zero Dynamic’s Single Station Fully Automatic New Energy Motor
Balancing Machine adopts soft -bearing pedestal which has high precision measurement
data and good repeatability. It can be connected with robot to
automatically load and unload rotors, easy to operate. According to
the rotor parameters, the equipment can automatically adjust the
distance between the bearing pedestals, automatic material-removal
radius. The equipment can produce independently, or be connected to
the automatic rotor production line, can be connected to the MES
system. The equipment is equipped with photoelectric safety
protection and automatic alarm and shutdown in case of malfunction.
Zero Dynamic’s has a full set of intellectual property rights and
can provide customized solutions for customer-specific products.
2. Technical Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Equipment Model | XH-8615M |
| 2 | Rotor length | 150-550mm |
| 3 | Rotor weight | 5-50kg |
| 4 | Thickness of rotor stack | 70-300mm |
| 5 | Rotor outer diameter | Φ90-φ240mm |
| 6 | Rotor shaft diameter | φ20-φ80mm |
| 7 | Balance correction radius range | φ90-φ220mm |
| 8 | Balancing speed range | 1000-2200rpm (related to rotor outer diameter and weight) |
| 9 | Double plane high speed dynamic balance correction | ISO1940 Standard, G1 |
| 10 | Minimum achievable residual unbalance | 0.2g.mm/kg |
| 11 | Reduction rate of unbalance | ≥90% |
| 12 | Primary balance correction rate | ≥85% |
| 13 | Drill cutter diameter | 5-12mm |
| 14 | Production speed | 200s (actual speed to be determined by the original unbalance of
the product) |
| 15 | Noise level | ≤75dB |
| 16 | Product changeover time | ≤30min |
| 17 | Equipment size | 2800*1700*2100 |
| 18 | Machine weight | 2.5 tons
|

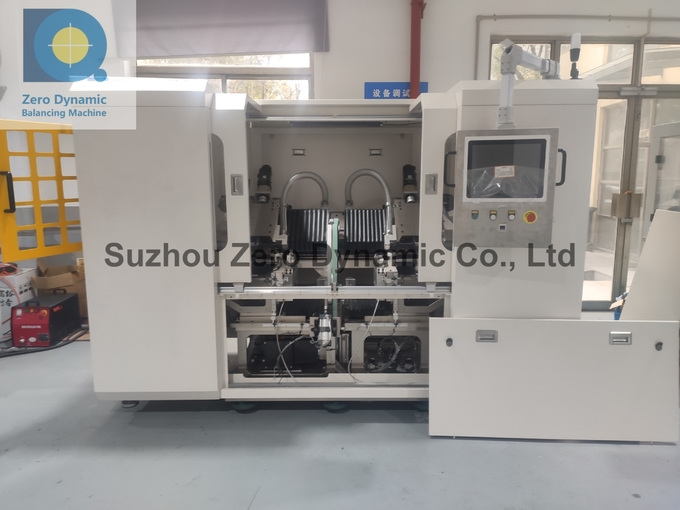

3. Equipment Photo:
4. Main Features:
4.1 It adopts a single system control, simple operation and good
stability.
4.2 Product changeover can be accomplished without changing
fixture.
4.3 Rotor correction radius switching is fully automated without
manual adjustment of mechanical parts.
4.4 Short cycle time, high one-time reduction rate.
4.5 Convenient changeover, automatic adjustment of support
pedestal. Only need to adjust the sensor position.
4.6 Touch-type man-machine interaction interface, convenient
operation.
4.7 Rigid structure design, safe and reliable to use.
4.8 Equipped with data recording function, which can record the
data of balance measurement and correction section, as well as the
data of drive section. These data are very important for subsequent
production and quality control.
