High Speed Hair Dryer Motor Assembly Automatic Laser Correction
Balancing Machine
1. Equipment Description
Zero Dynamic’s Hair Dryer Motor Vacuum Cleaner Motor Assembly
Automatic Laser Correction Balancing Machine is mainly applicable for the automatic single plane balance of
high-speed finished motor assembly such as high speed hair dryer
motor, high speed vacuum cleaner motor, sweeper motor, suction
pump, burr drill, ventilator motor, heat dissipation fan which have
very strict balance requirement.
Zero Dynamic’s Hair Dryer Motor Vacuum Cleaner Motor Assembly
Automatic Laser Correction Balancing Machine adopts soft bearing structure and high sensitivity vibration
sensor, enabling high measurement accuracy and good repeatability.
Customized tachometer can accurately detect unbalance angle for
motors up to 150,000 rpm. The equipment carries out automatic
balance correction by laser ablation. In contrast to other
mechanical methods of balance correction, the bearings are not
subjected to external forces during the balance correction process,
and the residual unbalance can be controlled to ≤0.5mg. The
equipment is also equipped with a CCD camera to ensure that the
laser ablation does not damage motor blades and other locations
where laser ablation is not permitted.
2. Technical Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Equipment model | XH-8601AL |
| 2 | Drive mode | Self-drive |
| 3 | Motor weight range | 10-300g |
| 4 | Laser correction diameter range | ø6- ø50mm |
| 5 | Maximum measurement accuracy | 0.03g.mm |
| 6 | Motor revolving speed range | 10000-150000rpm |
| 7 | Balance correction plane | Single plane |
| 8 | Balance correction method | Laser (50W) |
| 10 | Production cycle time | 20S-50S |
| 11 | Power supply | 220V/50HZ |
| 12 | Air source | 0.4-0.6Mpa |
| 13 | Safety protection | Fully enclosed |
| 14 | Dust removal method | Electric pulse dust removal |
| 15 | Equipment external dimension | 800X600X1700mm |

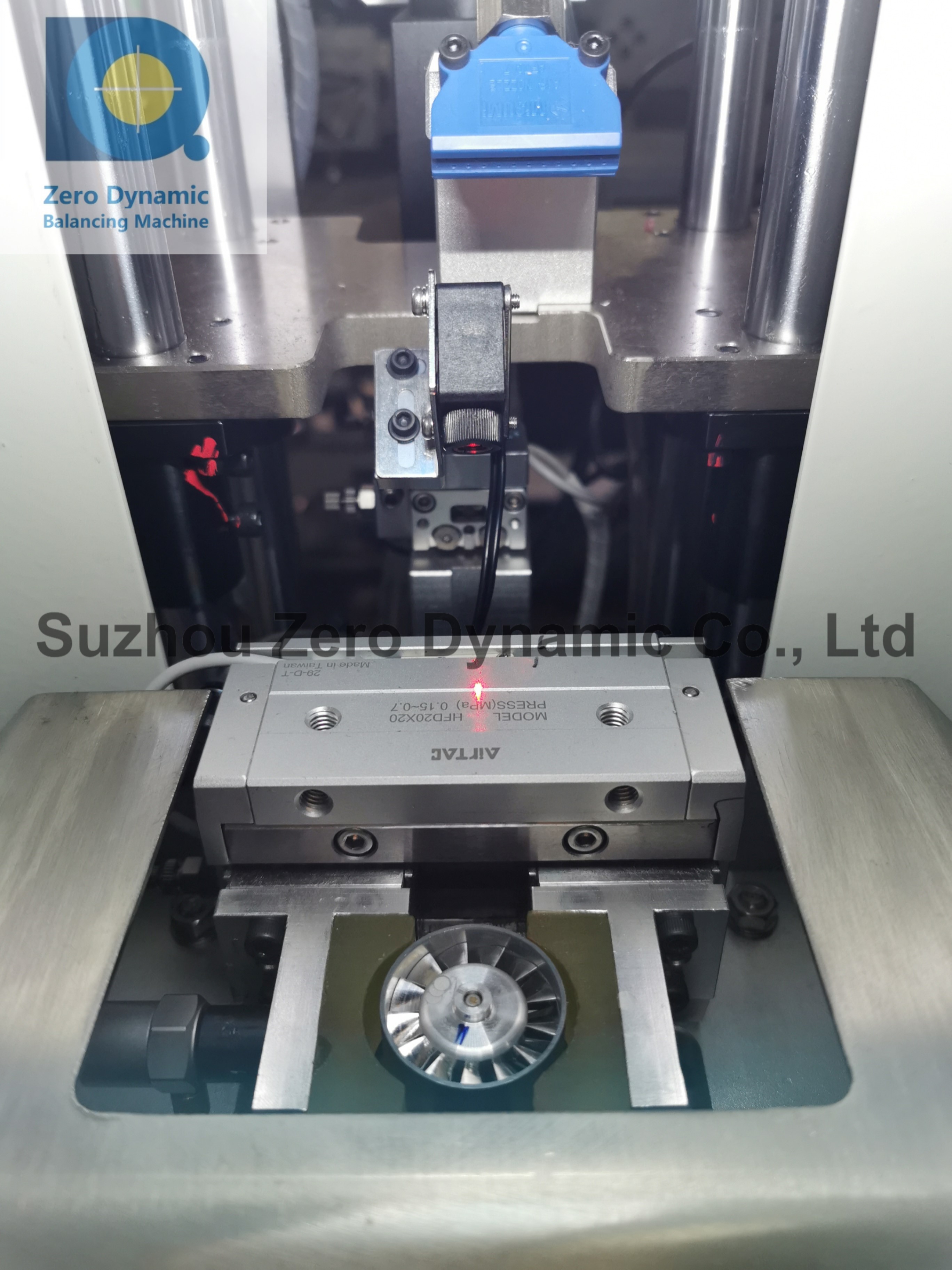

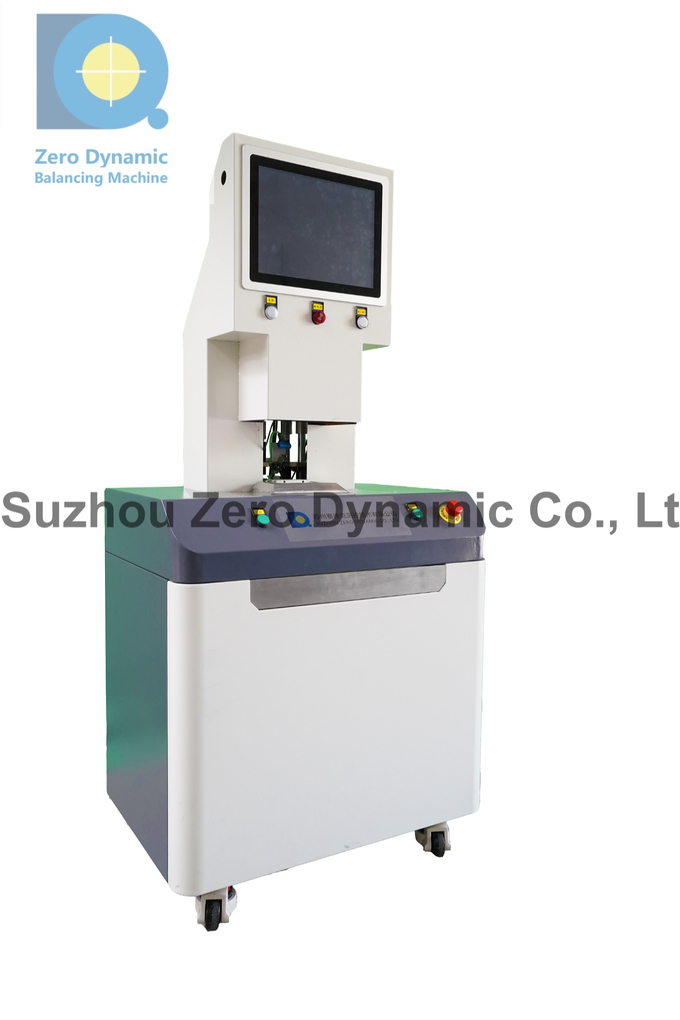

3. Equipment Photo:
4. Main Features:
4.1 17 inch touch screen monitor, industrial computer host
4.2 Industrial membrane keyboard
4.3 Operation system: Windows simplified Chinese
4.4 Balance correction: single plane
4.5 Balance correction method: laser correction
4.6 ISO1940 balance calculation function
4.7 Vibration spectrum analysis function
4.8 Vibration measurement function
4.9 Data storage function
4.10 Automatic balance correction function
4.11 Automatic judgement of riveting point function
4.12 Automatic zero marking function
