1. Equipment Description
Zero Dynamic’s Hair Dryer Motor Rotor Assembly, High Speed Motor
Rotor Component Laser Automatic Balancing Machine is mainly applicable for the precision balance measurement and
laser balance correction of high speed rotor and rotor assembly.

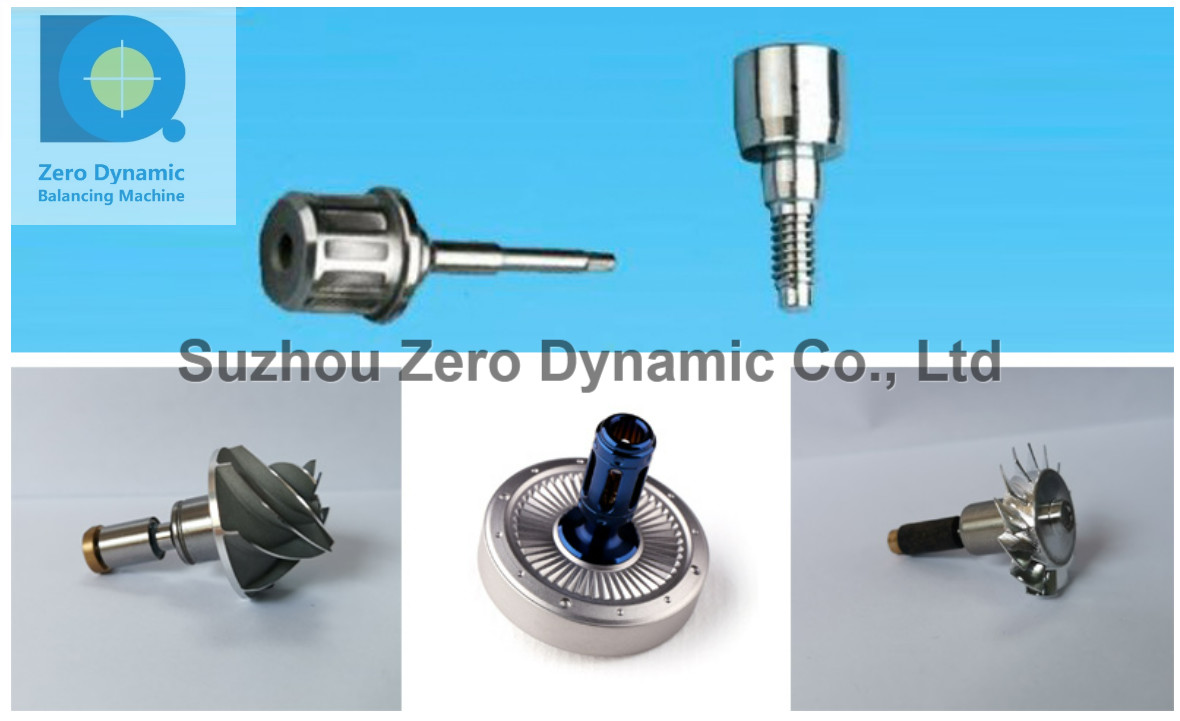

For example: high speed hair dryer rotor assembly, high speed
vacuum cleaner rotor assembly, dental drill rotor, gyroscope rotor,
respirator motor rotor, etc.
Zero Dynamic’s Hair Dryer Motor Rotor Assembly, High Speed Motor
Rotor Component Laser Automatic Balancing Machine achieves balance by laser ablation. Zero Dynamic’s balancing
software integrates laser control software, the bearings are not
subject to external force during balancing correction, which can
achieve precision balancing (residual unbalance value can be
≤0.5mg). Fully enclosed dust removal device prevents dust
pollution. If the workpiece initial unbalance value is large,
client may consider using it with our rotor assembly rough trimming
Balancing Machine XH-9600A to reach optimum productivity.
2. Technical Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Model | XH-9600BA |
| 2 | Rotor weight | 0.01-0.2KG |
| 3 | Rotor diameter range | φ6-φ30mm |
| 4 | Rotor support span | 20-120mm |
| 5 | Balanced speed range | 6000-10000rpm |
| 6 | Drive method | Belt drive/DC motor drive |
| 7 | Detection of unbalance | Acceleration sensor |
| 8 | Detection of unbalance angle | Optical fiber sensor |
| 9 | Power supply | 220V single-phase |
| 10 | Balance function | Double plane dynamic balance |
| 11 | Operation interface | Windows Chinese |
| 12 | Measurement system | XH-8600 |
| 13 | Maximum measurement accuracy | 0.005g.mm(fan blade: ≤0.5mg,rotor:≤1mg) |
| 14 | Display accuracy | 0.1mg |
| 15 | Dynamic balance repeatability at fan blade end | 0.2mg |
| 16 | Dynamic balance repeatability at magnetic steel end | 0.5mg |
| 17 | Minimum attainable residual unbalance | Fan blade end ≤0.5mg, magnetic steel end ≤1mg
|

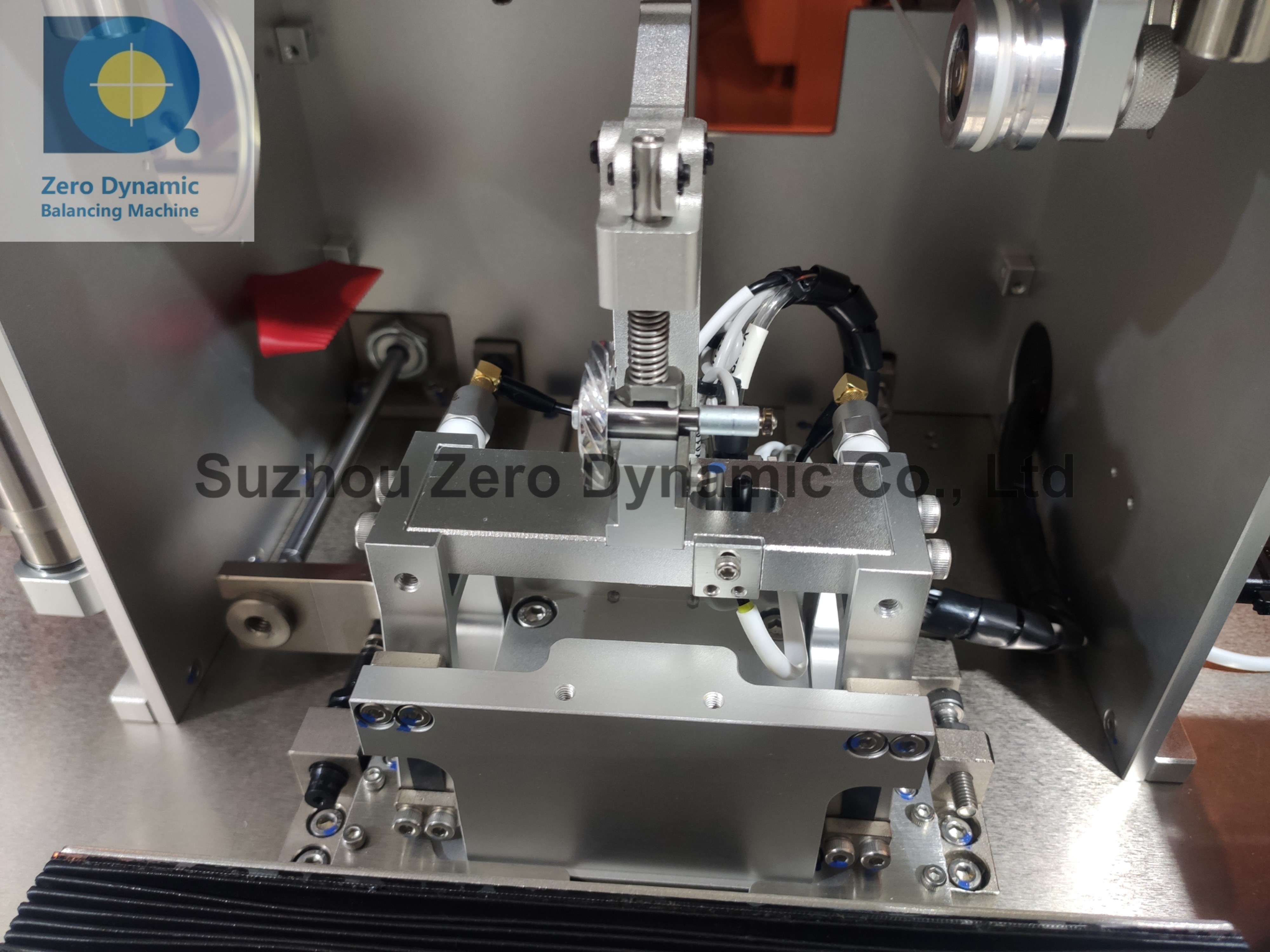

3. Equipment Photo:
4. Main Features:
4.1 17" touchscreen monitor, industrial computer.
4.2 Industrial membrane keyboard.
4.3 Operating system: Windows Simplified Chinese.
4.4 Balance correction: single face.
4.5 Balance correction method: laser material removal.
4.6 ISO1940 balance calculation function.
4.7 Vibration spectrum analysis function.
4.8 Vibration measurement function.
4.9 Data storage function.
4.10 Automatic balance correction function.
4.11 Automatic zero point marking function.
5. About Zero Dynamic:
Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging
in full automatic balancing equipment and related vibration
measurement since 2003.
Over the past 20 years, Zero Dynamic has developed 100+ kinds of
equipments. We mainly deals with all kinds of advanced dynamic
balancing equipment, field dynamic balancing instrument, vibrometer
and motor performance testing machine. High revolving speed and
high precision are the key features of our products. We have served
3000+ clients in China and abroad, including many world-famous
companies such as LG, Black&Decker, Nidec, Huawei, Foxconn,
Midea, Ecovas, Daikin, Lexy.
Now (2024) Zero Dynamic has a factory of 10,000sqm and more than
120 staff including a professional R&D team of 30+ engineers
and 20+ debugging and after-sales team.
As an important participant in Chinese dynamic balancing industry,
Zero Dynamic continues to increase the development of new products,
and is actively developing into the new energy industry as well as
aerospace and other high-speed dynamic balancing and intelligent
manufacturing fields, aiming to provide customers with reliable and
diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of
balancing machines, especially high-speed and high-precision soft-bearing balancing machines and
automatic balancing machines. 20+ years of industry experience and 3000+ customer service
experience make Zero Dynamic have the top new product development
ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC,
Keyence, etc. Key parts have patents, high safety protection level,
stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff
including a professional R&D team of 30+ engineers, 20+
debugging and after-sales team. We always keep 100+ balancing
machines in stock, covering most common balancing machine models.
Once order has been confirmed, balancing machines in stock can be
commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which
serve our clients wholeheartedly. For our clients, no matter the
equipment is within or beyond the 12-month warranty period, we can
provide technical consultance service. Within warranty period, our
service team will give a telephone response within 4 hours after
receiving client's fault report and reach the machine site within
24hours (within the city) or 72 hours (other cities or provinces).
If the fault can't be cleared, our service staff could only leave
the site after getting client's approval.
