1. Equipment Description
Zero Dynamic’s Two Station BLDC Motor Rotor Automatic Balancing
Machine Miniature Motor Rotor Balancer is compatible with various BLDC motor rotor and miniature motor
rotor with mass range 0.01-0.2kg, diameter range φ6-φ30mm and
length range 20-120mm. The equipment has a compact structure,
covers a small area, is quick for changeover, and is suitable for
small batch and multi-species production.
The measurement station Zero Dynamic’s Two Station BLDC Motor Rotor Automatic Balancing Machine Miniature
Motor Rotor Balancer adopts soft support structure and high sensitivity vibration
sensor and has advantage of high measurement accuracy, good
repeatability and high vibration resistance. The equipment has two
stations: balance measurement station and balance correction
station. The equipment adopts radial drilling to remove material,
which will not damage the structure of the rotor itself. This
equipment requires manual loading and unloading (can be equipped
with a separate assembly line or be associated with fully automatic
rotor production line according to customer requirements). There
will be sound and light prompts after passing the judgement, and
one operator can operate two machines at the same time.
2. Technical Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Equipment model | XH-9600AⅡ |
| 2 | Rotor weight | 0.01-0.2Kg |
| 3 | Rotor diameter range | φ6-φ30mm |
| 4 | Production cycle time | ≤20S |
| 5 | Supporting rotor span | 20-120mm |
| 6 | Balanced revolving speed range | 2000-6000rpm |
| 7 | Drive method | Belt drive/DC motor drive |
| 8 | Detection of unbalance | Acceleration sensor |
| 9 | Detection of unbalance angle | Optical fiber sensor |
| 10 | Power supply | 220V single phase |
| 11 | Balance function | Double plane dynamic balance |
| 12 | Operation interface | Windows Chinese |
| 13 | Measurement system | XH-9600 |
| 14 | Maximum measurement accuracy | 0.01g.mm |
| 15 | Equipment colour | Computer Gray |
| 16 | Equipment external dimension | 1000X1000X1800mm
|

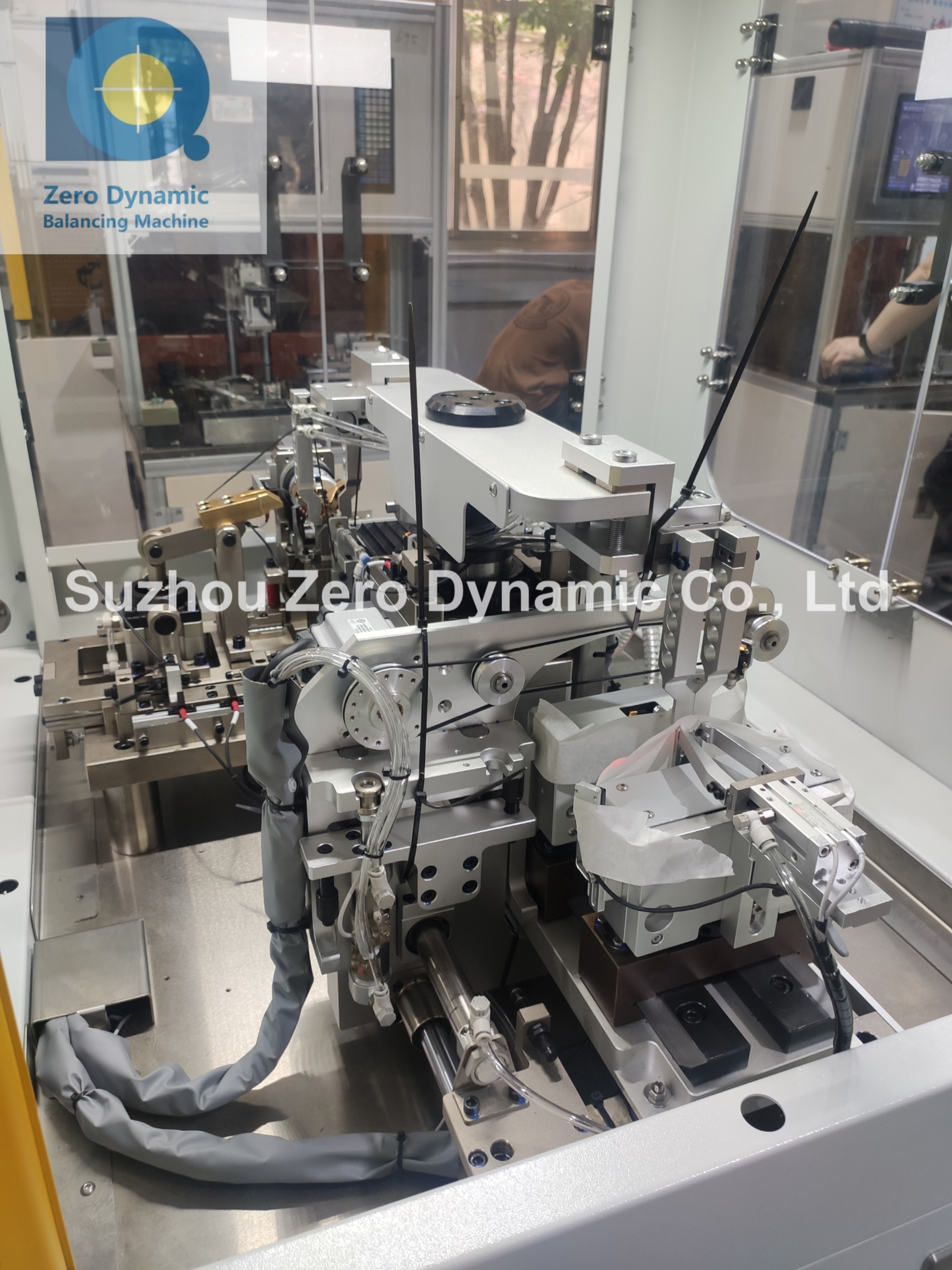

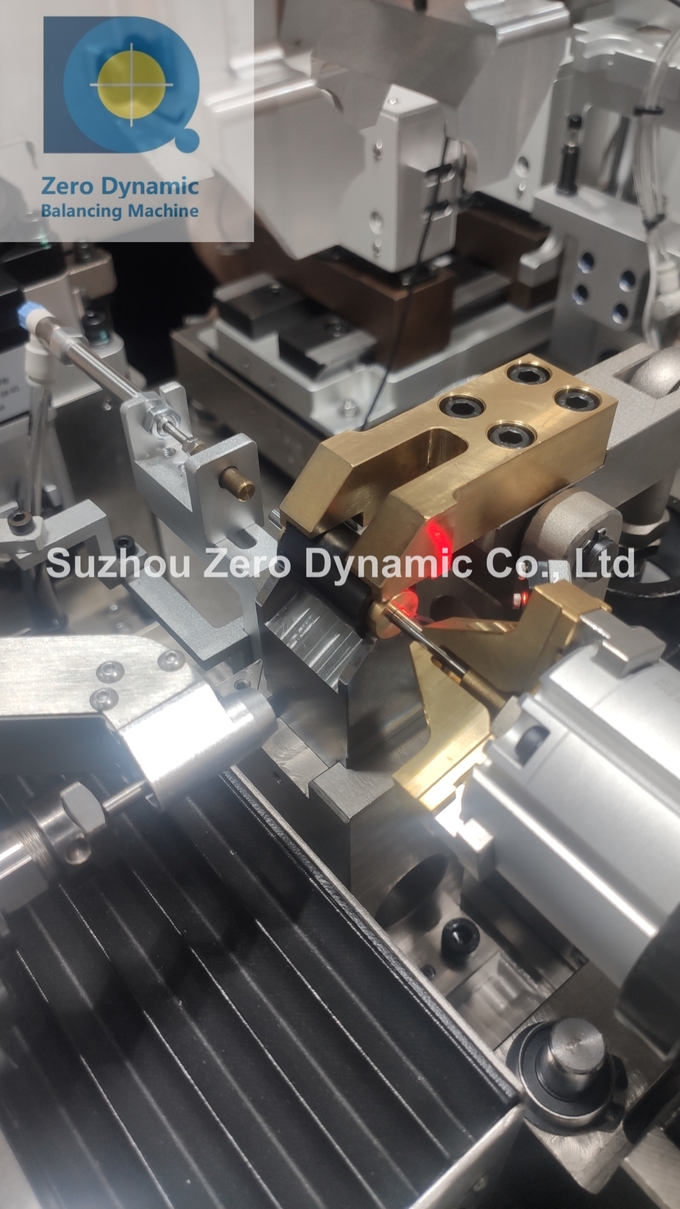

3. Equipment Photo:
4. Main Features:
4.1 There's no need to re-calibrate for the same type of rotor with
the same revolving speed, easy to setup.
4.2 The test software developed by our company has the data saving,
exporting & printing and inquiry functions.
4.3 It has the MES data uploading function.
4.4 High accuracy, good repeatability.
4.5 Windows operation system, Chinese interface, easy to learn.
4.6 It support the barcode input and has strong traceability.
4.7 Automatic punch to remove material, remove the product after
being qualified. High degree of automation.
4.8 The equipment has built-in alarm prompt, easy to locate the
exact fault position.
4.9 Easy to replace drill bit, automatic iron fillings collection
system.
5. About Zero Dynamic:
Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging
in full automatic balancing equipment and related vibration
measurement since 2003.
Over the past 20 years, Zero Dynamic has developed 100+ kinds of
equipments. We mainly deals with all kinds of advanced dynamic
balancing equipment, field dynamic balancing instrument, vibrometer
and motor performance testing machine. High revolving speed and
high precision are the key features of our products. We have served
3000+ clients in China and abroad, including many world-famous
companies such as LG, Black&Decker, Nidec, Huawei, Foxconn,
Midea, Ecovas, Daikin, Lexy.
Now (2024) Zero Dynamic has a factory of 10,000sqm and more than
120 staff including a professional R&D team of 30+ engineers
and 20+ debugging and after-sales team.
As an important participant in Chinese dynamic balancing industry,
Zero Dynamic continues to increase the development of new products,
and is actively developing into the new energy industry as well as
aerospace and other high-speed dynamic balancing and intelligent
manufacturing fields, aiming to provide customers with reliable and
diversified product choices.
