1. Equipment Description
Zero Dynamic's Electric Motor Assembly, DC/AC Motor Assembly
Balancing Machine is applicable for unbalance measurement of DC, AC and brushless
motor assemblies such as cleaner motor, sweeper motor, ventilator
motor.
Zero Dynamic's Electric Motor Assembly, DC/AC Motor Assembly Balancing Machine is compatible with the balance measurement of different sizes of
motors (different motor need to be customized with its own
corresponding fixture). The same motors can be produced
continuously without re-calibration. Changeover is easy to learn
and operators can change the fixture and re-calibrate the machine
independently after training.
The equipment adopts soft bearing structure, which has high
measurement accuracy and good repeatability. The equipment adopts
high-sensitivity acceleration sensor, no lateral sensitivity, lower
limit requirement. Its mechanical model is simple & reasonable, and
the actual unbalance of the rotor can be truly reflected by the
soft support pedestals and sensor.
2. Technical Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Supporting max motor mass | 1kg |
| 2 | Max motor diameter | φ120 |
| 3 | Maximum measurement accuracy | 0.03g.mm |
| 4 | Drive method | self-drive (drive power provided by the client) |
| 5 | Motor speed | 4000-50000rpm |
| 6 | Power supply | 220V 50HZ |
| 7 | Balance correction plane | Vertical single plane |
| 8 | Motor wiring | Fast clamping |
| 9 | Motor fixture | Easy to change |
| 10 | Balance display accuracy | 0.1mg |
| 11 | Equipment external dimension | 660*540*1550mm |
| 12 | Color | Computer gray
|

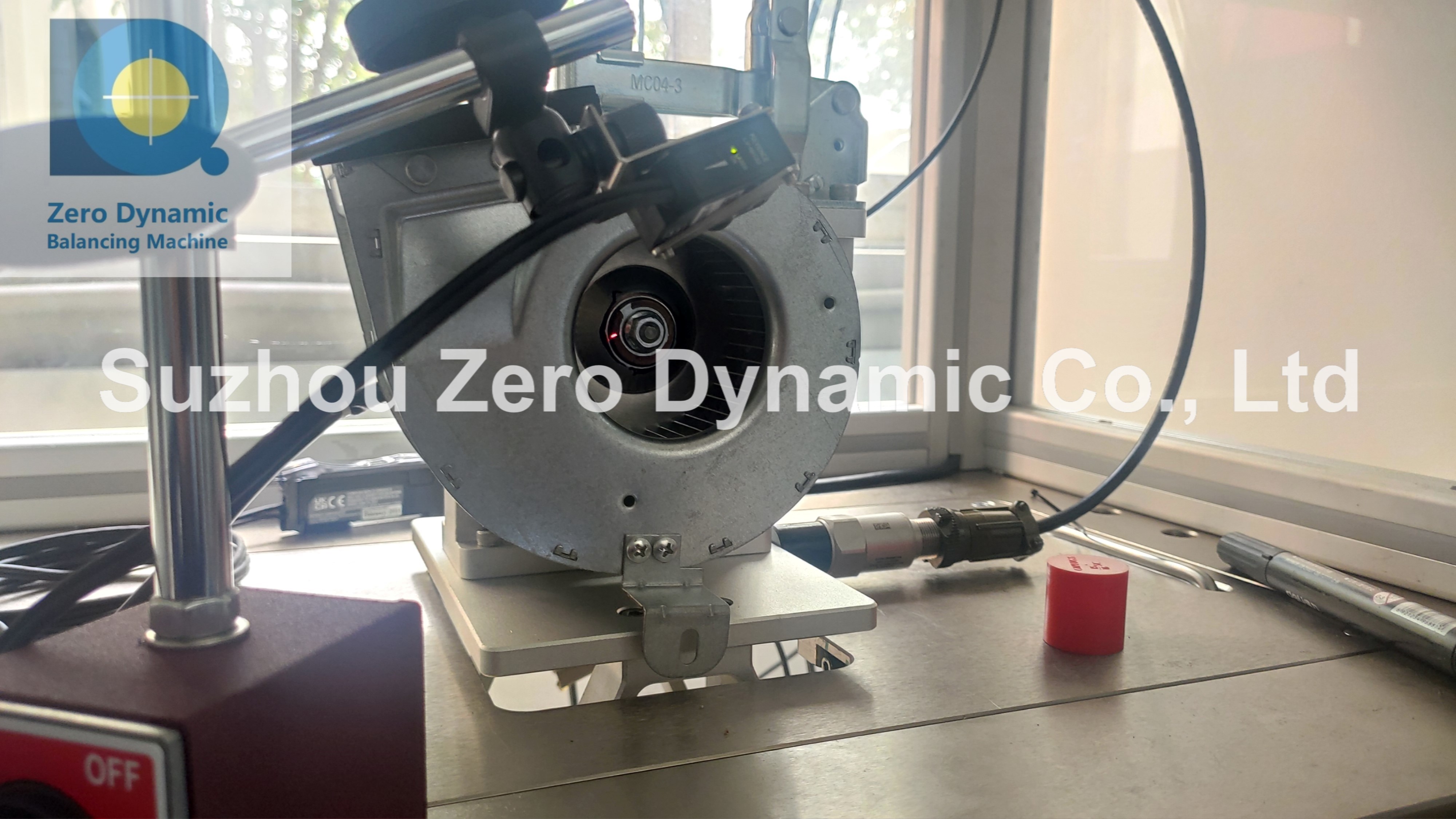

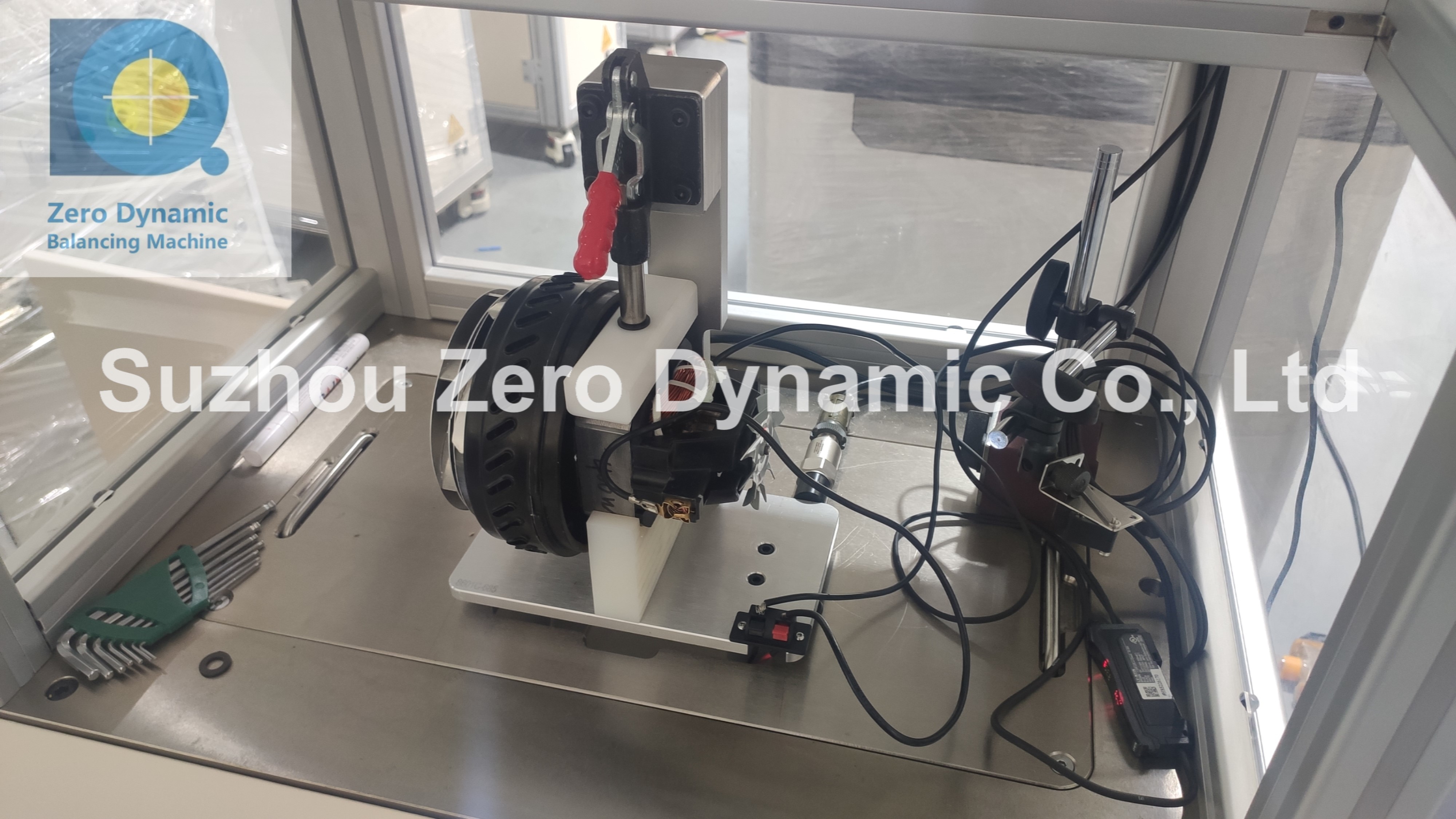

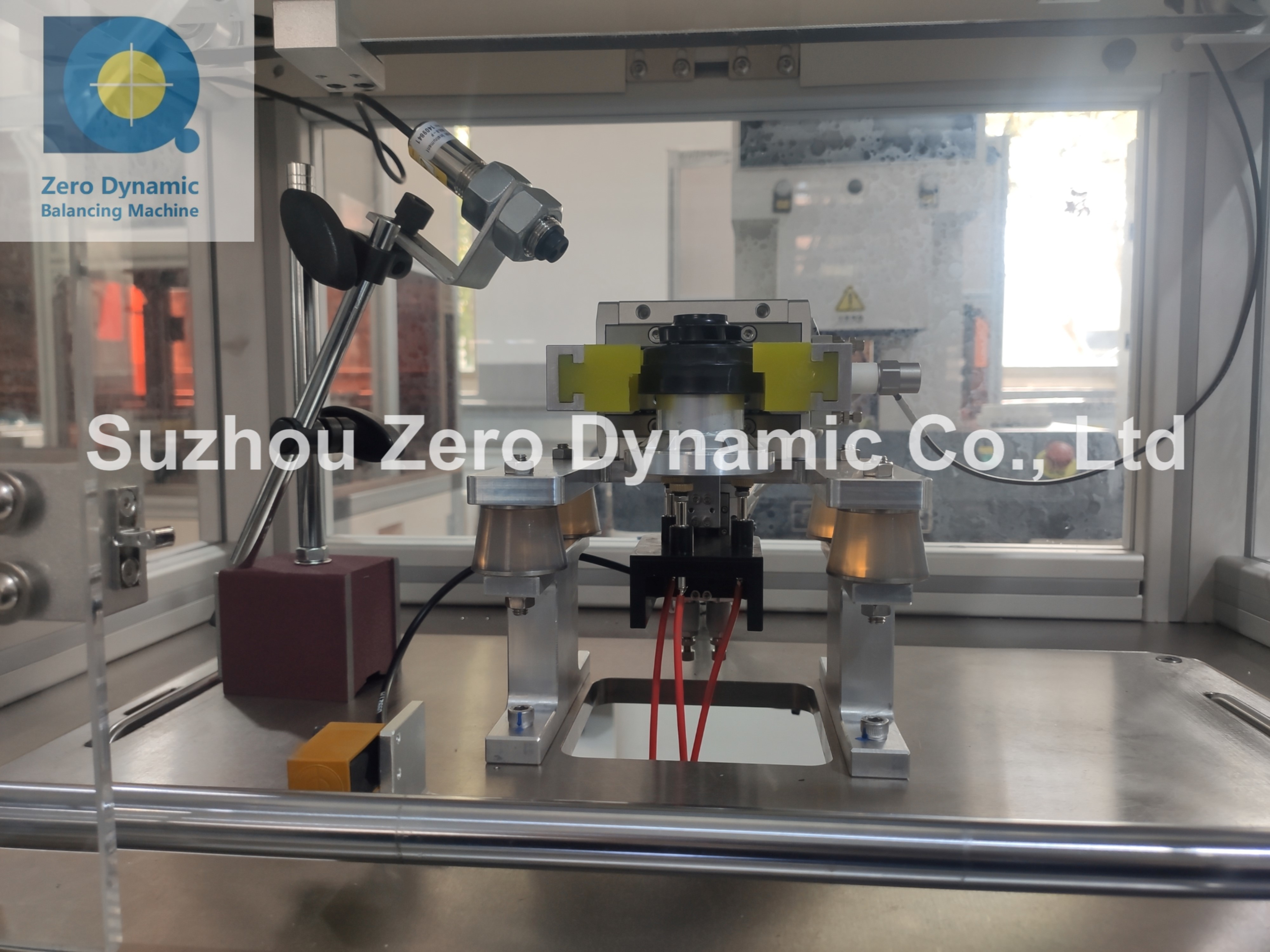

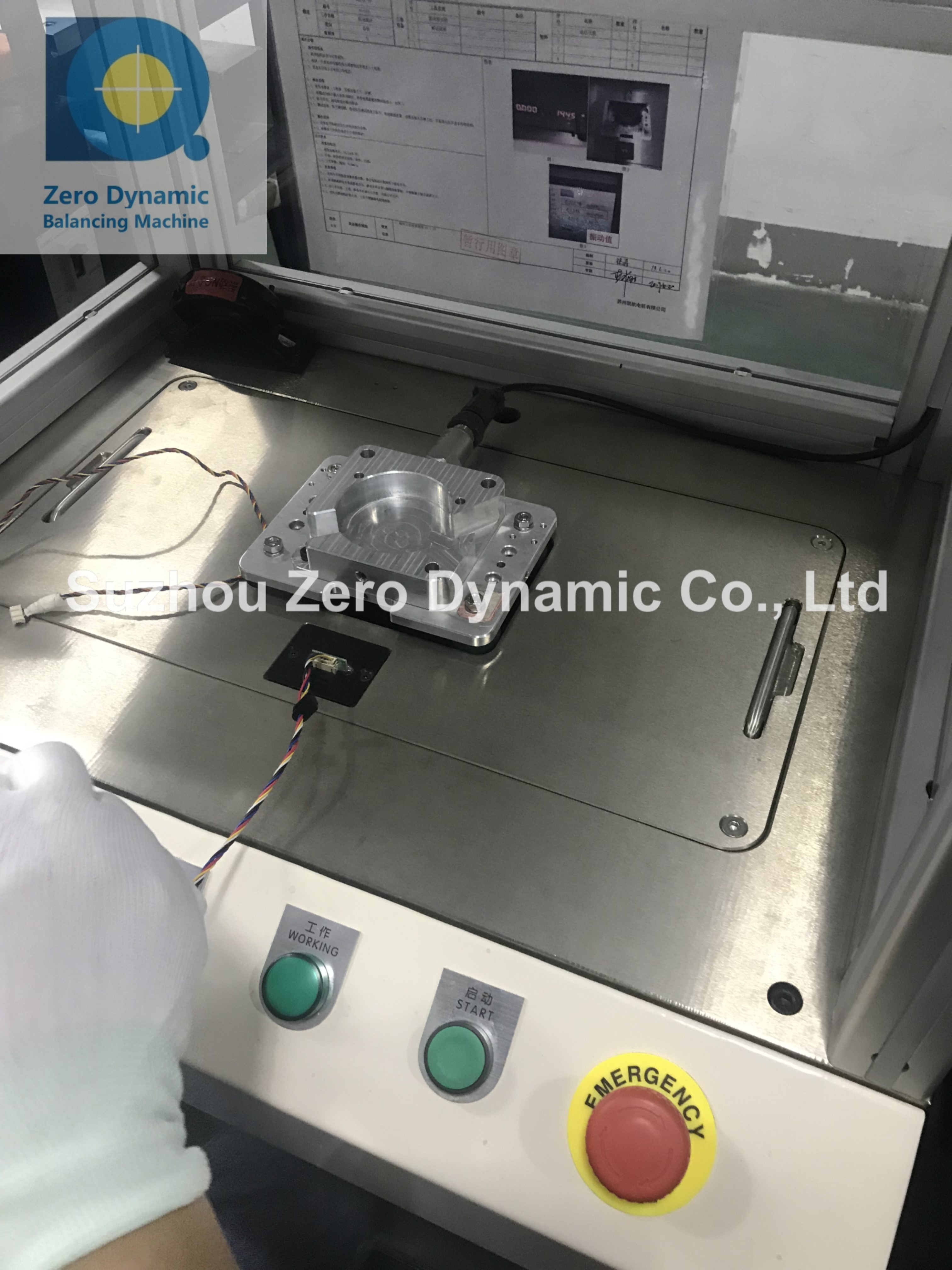

3. Equipment Photo:
4. Main Features:
4.1 Same motor, same speed, no need to repeat calibration.
4.2 Continuous work, smooth operation of the balancing machine.
4.3 Intuitive balancing interface display, direct digital display
of unbalance values and angles.
4.4 Dynamic balancing test at the rated speed of the motor.
4.5 Windows operating system, easy to learn.
4.6 Large reduction in motor noise and vibration after dynamic
balancing correction.
5. About Zero Dynamic:
Suzhou Zero Dynamic Co., Ltd is a top Chinese manufacturer engaging
in full automatic balancing equipment and related vibration
measurement since 2003.
Over the past 20 years, Zero Dynamic has developed 100+ kinds of
equipments. We mainly deals with all kinds of advanced dynamic
balancing equipment, field dynamic balancing instrument, vibrometer
and motor performance testing machine. High revolving speed and
high precision are the key features of our products. We have served
3000+ clients in China and abroad, including many world-famous
companies such as LG, Black&Decker, Nidec, Huawei, Foxconn,
Midea, Ecovas, Daikin, Lexy.
Now (2024) Zero Dynamic has a factory of 10,000sqm and more than
120 staff including a professional R&D team of 30+ engineers
and 20+ debugging and after-sales team.
As an important participant in Chinese dynamic balancing industry,
Zero Dynamic continues to increase the development of new products,
and is actively developing into the new energy industry as well as
aerospace and other high-speed dynamic balancing and intelligent
manufacturing fields, aiming to provide customers with reliable and
diversified product choices.
6. Why choose Zero Dynamic Balancing Machine?
6.1 High-speed and high-precision. Zero Dynamic is good at developing and manufacturing all kinds of
balancing machines, especially high-speed and high-precision soft-bearing balancing machines and
automatic balancing machines. 20+ years of industry experience and 3000+ customer service
experience make Zero Dynamic have the top new product development
ability.
6.2 Low equipment failure rate. Equipment parts adopt famous brands: Mitsubishi, Schneider, SMC,
Keyence, etc. Key parts have patents, high safety protection level,
stable balance performance, service life of more than 10 years.
6.3 Adequate stock. Zero Dynamic has a factory of 10,000 ㎡ and more than 120 staff
including a professional R&D team of 30+ engineers, 20+
debugging and after-sales team. We always keep 100+ balancing
machines in stock, covering most common balancing machine models.
Once order has been confirmed, balancing machines in stock can be
commissioned and shipped out within 1-2 weeks.
6.4 Perfect after-sales service. Zero Dynamic has an after-sales service team of 20+ people which
serve our clients wholeheartedly. For our clients, no matter the
equipment is within or beyond the 12-month warranty period, we can
provide technical consultance service. Within warranty period, our
service team will give a telephone response within 4 hours after
receiving client's fault report and reach the machine site within
24hours (within the city) or 72 hours (other cities or provinces).
If the fault can't be cleared, our service staff could only leave
the site after getting client's approval.
