1. Equipment Description
Zero Dynamic’s Magnetic Motor Rotor Single Station Automatic
Balancing Machine EV Motor Rotor Balancer is an all-in-one automatic balancing machine suitable for double
plane balance measurement & end face drilling correction of various
magnetic and non-magnetic products such as New Energy motor rotor,
EV motor rotor, mechanical & electrical spindle rotor, centre motor
rotor, centre motor, Asynchronous induction motor.
Zero Dynamic’s Magnetic Motor Rotor Single Station Automatic
Balancing Machine EV Motor Rotor Balancer is compatible with rotors of shaft diameter φ20-φ80mm and diameter
range φ130-φ220mm. Specially designed support pedestals effectively
transmits mechanical force, sturdy and reliable, with small
vibration damping and good rigidity. The high sensitivity sensor
used has good linearity, durability and reliability. This equipment
adopts PLC as the main control machine to complete the calculation
related to the correction of dynamic balancing test and rotor phase
control, and uses the touch screen as the human-machine
communication interface to set the dynamic balancing parameters and
operate the machine, which makes the operation very easy.
2. Technical Parameters:
| Serial No. | Item Details | Parameter Range |
| 1 | Equipment model | XH-8615A |
| 2 | Allowable supporting journal diameter of supporting bracket | Φ20-80mm |
| 3 | Allowable clamping rotor diameter range | Φ130-220mm |
| 4 | Total length of allowable supporting rotor | ≤500mm |
| 5 | Adjusting range of supporting distance | 220-450mm |
| 6 | Double plane high speed dynamic balance correction | ISO1940 Standard, G1 |
| 7 | Allowable maximum drilling diameter | Φ12mm |
| 8 | Allowable maximum drilling depth | 20mm |
| 9 | Maximum displacement distance for single side drilling structure | 150mm |
| 10 | Allowable drilling correction material | Aluminum, copper |
| 11 | Minimum attainable residual unbalance emar | ＜0.2g.mm/kg |
| 12 | Unbalance reduction ratio URR | ≥90% |
| 13 | Balanced revolving speed | 1200-3000r/min |
| 14 | Material of dynamic balance bracket | 304 stainless steel |
| 15 | Drive motor power | 3.7KW |
| 16 | Equipment external dimension | 2500*1300*2000mm (excluding vacuum cleaner) |
| 17 | Total weight | 1500kg
|

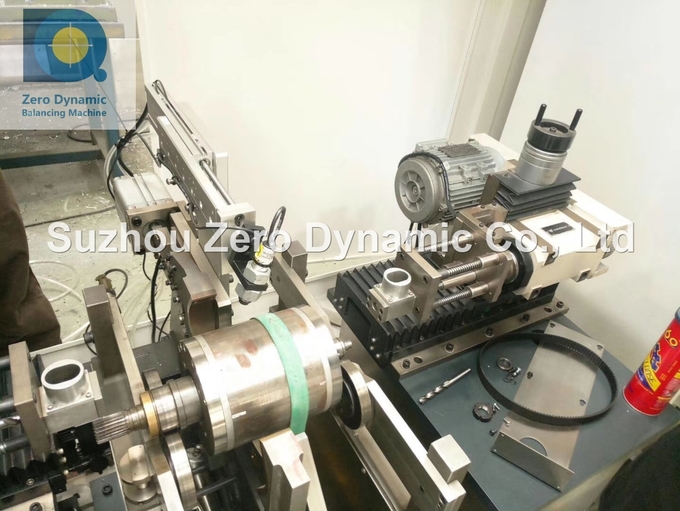

3. Equipment Photo:
4. Main Features:
4.1 Semi-automatic and (full) automatic are free to choose.
4.2 It can punch axially.
4.3 Ultra-high accuracy, meeting ISO1940 Standard G1.0 Grade
4.4 Automatic iron fillings collection system.
4.5 SUS304 material anti-magnetic treatment.
4.6 It is applicable for multiple varieties, mass production, easy
for changeover.
4.7 Windows operation system, Chinese interface software, easy to
learn.
